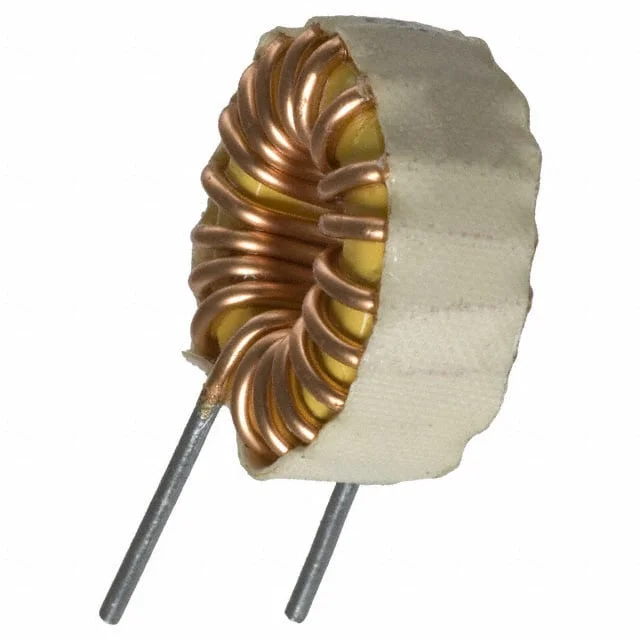

FIXED IND 800UH 1.75A 640 MOHM
| Inductance | 800 µH |
| Tolerance | ±15% |
| Current Rating | 1.75 A |
| DC Resistance (DCR) | 640mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.125" Dia x 0.562" W (28.58mm x 14.27mm) |
| Case / Size | Radial, Vertical (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 800UH 1.75A 640 MOHM |
| Series | 5700 |
| productStatus | Active |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
