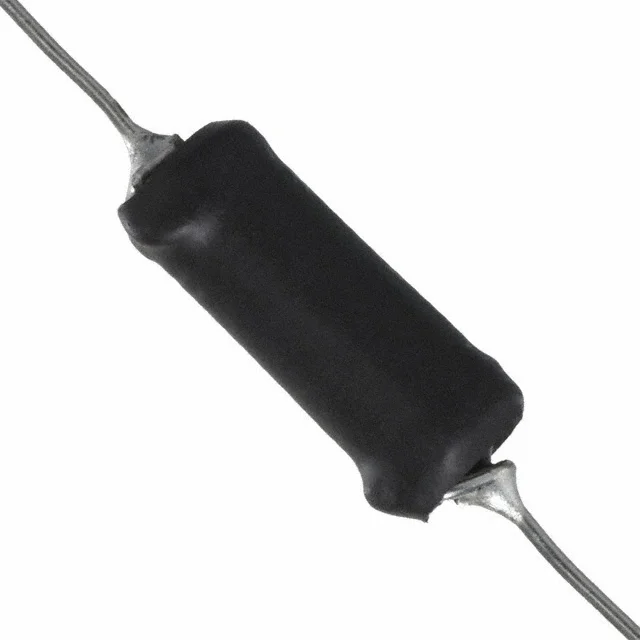

FIXED IND 18UH 1.8A 43 MOHM TH
| Inductance | 18 µH |
| Tolerance | ±10% |
| Current Rating | 1.8 A |
| DC Resistance (DCR) | 43mOhm Max |
| saturationCurrent | 2.8A |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 18UH 1.8A 43 MOHM TH |
| Series | 5800 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
