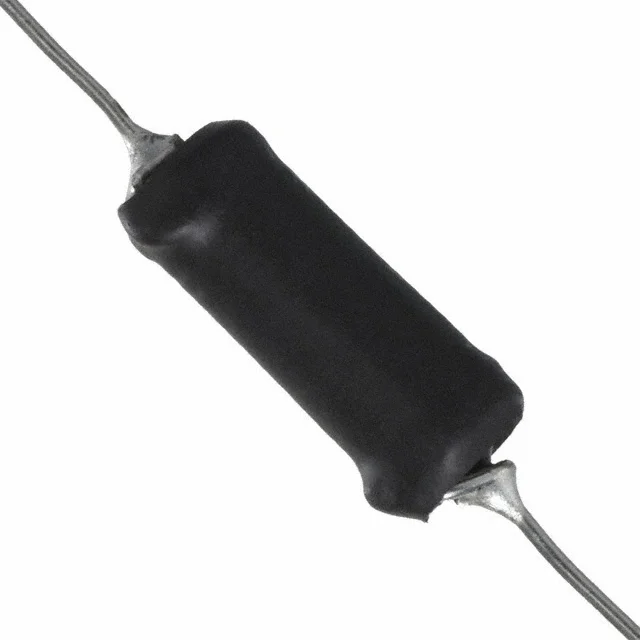

FIXED IND 2.2MH 170MA 5.3 OHM TH
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating | 170 mA |
| DC Resistance (DCR) | 5.3Ohm Max |
| saturationCurrent | 240mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.275" Dia x 0.700" L (6.99mm x 17.78mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2MH 170MA 5.3 OHM TH |
| Series | 5800 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
