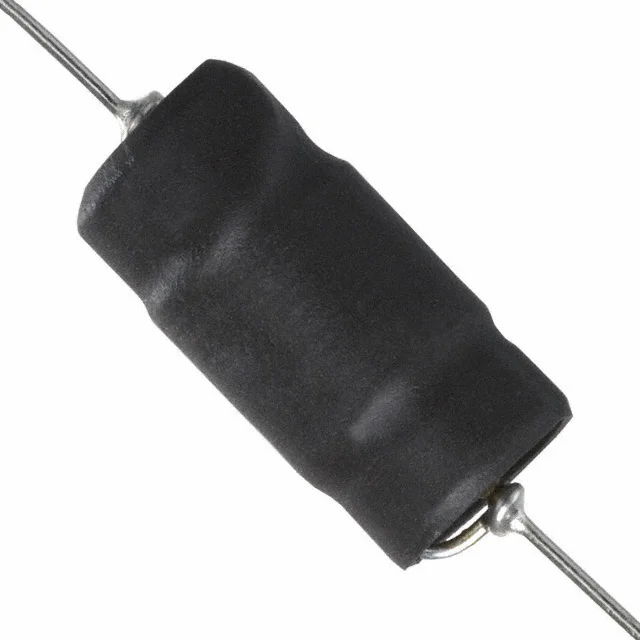

Description
FIXED IND 2.2MH 500MA 1.7 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5900-222.
5900-222 has an inductance value of 2.2 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5900-222 is rated for 500 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5900-222 lists a DC resistance of 1.7Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5900-222 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5900-222 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 2.2 mH |
| Tolerance | ±10% |
| Current Rating | 500 mA |
| DC Resistance (DCR) | 1.7Ohm Max |
| Saturation Current | 560mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2MH 500MA 1.7 OHM TH |
| Series | 5900 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
