Description

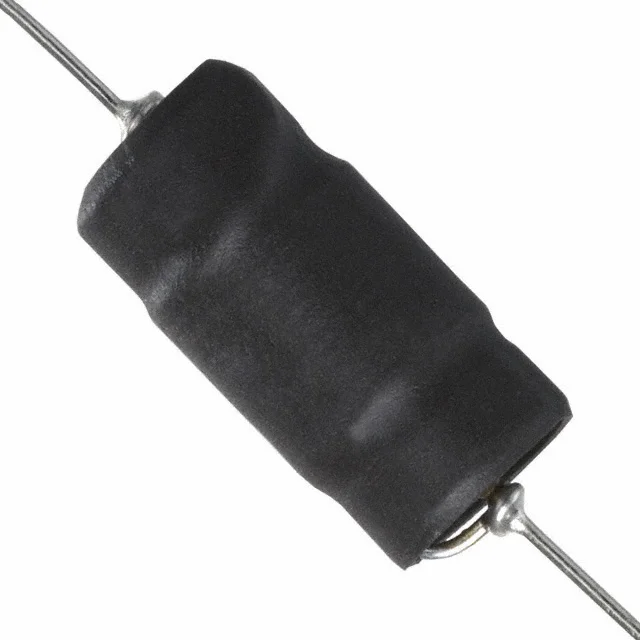

FIXED IND 22MH 150MA 21.8 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5900-223.
5900-223 has an inductance value of 22 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5900-223 is rated for 150 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5900-223 lists a DC resistance of 21.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5900-223 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5900-223 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 mH |
| Tolerance | ±10% |
| Current Rating | 150 mA |
| DC Resistance (DCR) | 21.8Ohm Max |
| Saturation Current | 180mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 22MH 150MA 21.8 OHM TH |
| Series | 5900 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
