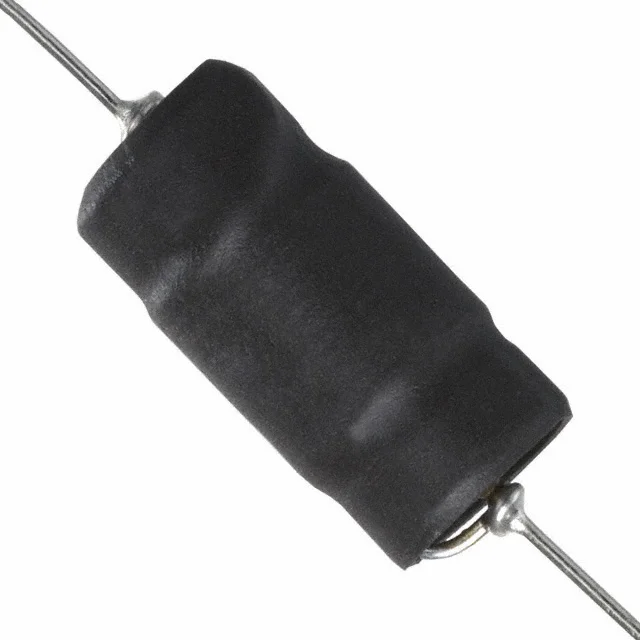

Description
FIXED IND 5.6MH 320MA 4.1 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5900-562.
5900-562 has an inductance value of 5.6 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5900-562 is rated for 320 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5900-562 lists a DC resistance of 4.1Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5900-562 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5900-562 to manufacturer, series, and broader datasheet collections.
Similar-specification candidates · Engineering review required
Screened against recorded construction, core, mounting, dimensions and current/DCR. Land pattern, test conditions and circuit compatibility still require validation.
Missing evidence or no candidates passed screening. A replacement cannot be determined; request a review of the original datasheets.
Product Attributes
| Inductance | 5.6 mH |
| Tolerance | ±10% |
| Current Rating | 320 mA |
| DC Resistance (DCR) | 4.1Ohm Max |
| Saturation Current | 350mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 5.6MH 320MA 4.1 OHM TH |
| Series | 5900 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
