Description

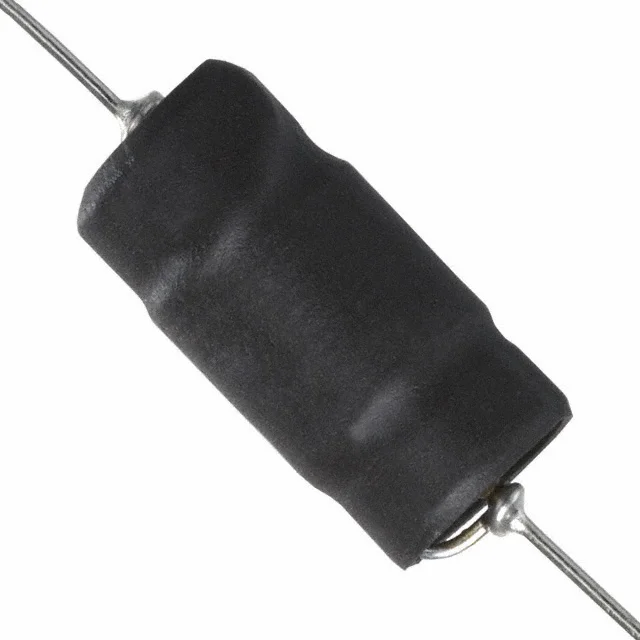

FIXED IND 56MH 100MA 45 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 5900-563.
5900-563 has an inductance value of 56 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
5900-563 is rated for 100 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
5900-563 lists a DC resistance of 45Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
5900-563 uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 5900-563 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 56 mH |
| Tolerance | ±10% |
| Current Rating | 100 mA |
| DC Resistance (DCR) | 45Ohm Max |
| Saturation Current | 110mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 56MH 100MA 45 OHM TH |
| Series | 5900 |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
