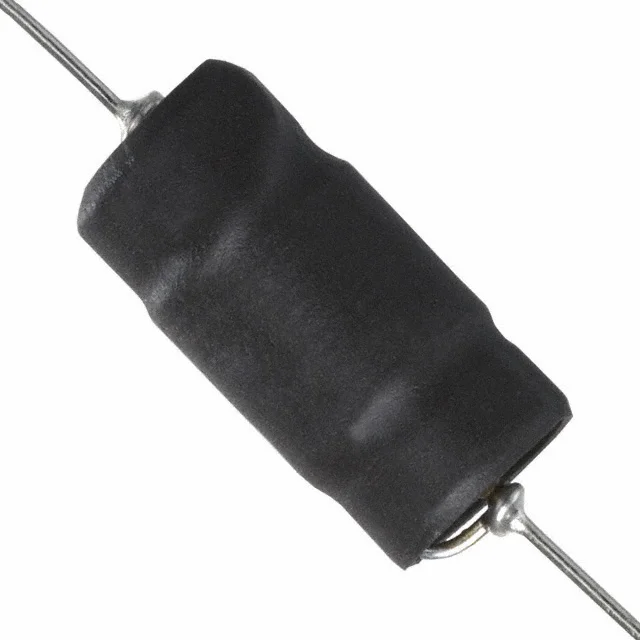

Description
FIXED IND 820UH 850MA 580 MOHM
Specifications
Inductance
820 µH
Current Rating
850 mA
DC Resistance (DCR)
580mOhm Max
Dimensions
0.453" Dia x 0.900" L (11.51mm x 22.86mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 820 µH |
| Tolerance | ±10% |
| Current Rating | 850 mA |
| DC Resistance (DCR) | 580mOhm Max |
| saturationCurrent | 920mA |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.453" Dia x 0.900" L (11.51mm x 22.86mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 820UH 850MA 580 MOHM |
| Series | 5900 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
