Description

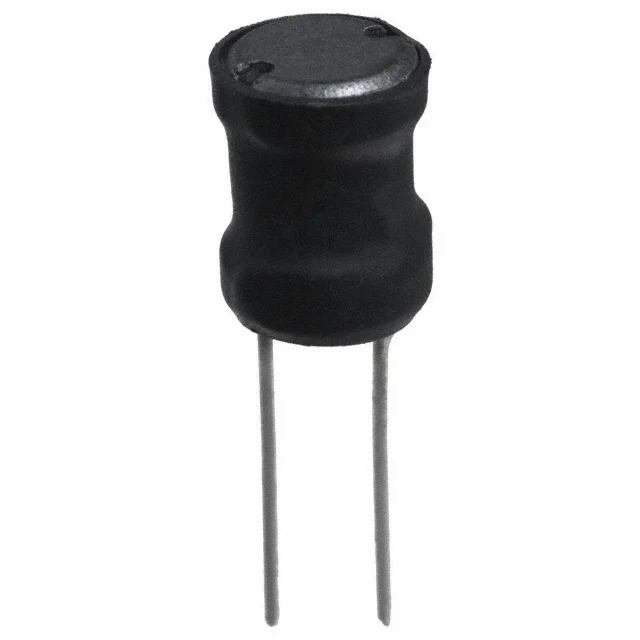

FIXED IND 1UH 10A 13 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 6000-1R0M-RC.
6000-1R0M-RC has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
6000-1R0M-RC is rated for 10 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
6000-1R0M-RC lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
6000-1R0M-RC uses a package or case of Radial, Vertical Cylinder. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 6000-1R0M-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 13mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Package / Case | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 10A 13 MOHM TH |
| Series | 6000 |
| Product Status | Not For New Designs |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 20 @ 7.96MHz |
| Self Resonant Frequency | 150MHz |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 0.480" (12.20mm) |
