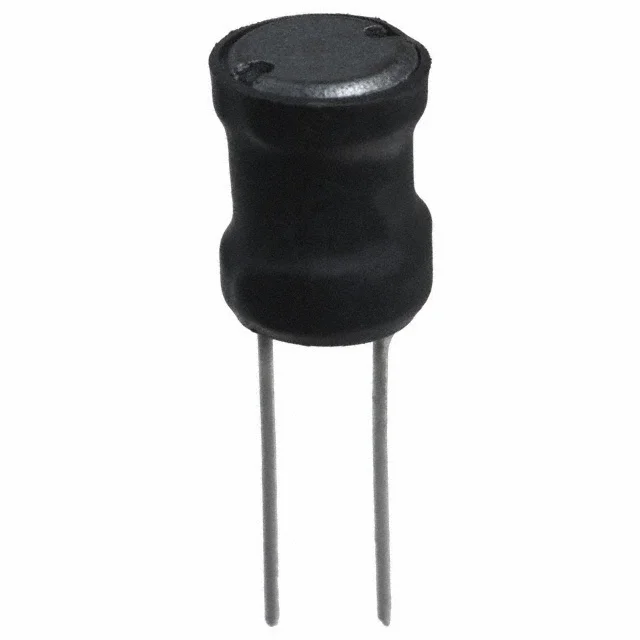

FIXED IND 33UH 2.05A 90 MOHM TH
| Inductance | 33 µH |
| Tolerance | ±10% |
| Current Rating | 2.05 A |
| DC Resistance (DCR) | 90mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 2.05A 90 MOHM TH |
| Series | 6000 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 30 @ 2.52MHz |
| selfResonantFreq | 7.8MHz |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.480" (12.20mm) |
| features | - |
