Description

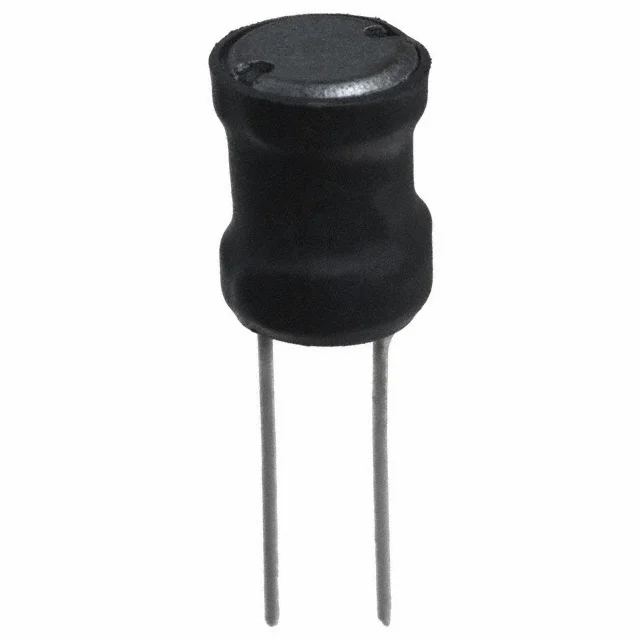

FIXED IND 3.3UH 5.5A 25 MOHM TH
Specifications
Inductance
3.3 µH
Current Rating
5.5 A
DC Resistance (DCR)
25mOhm Max
Dimensions
0.354" Dia (9.00mm)
Product Attributes
Manufacturer Verified
Last verified: 6/11/2026| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 5.5 A |
| DC Resistance (DCR) | 25mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3.3UH 5.5A 25 MOHM TH |
| Series | 6000 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 7.96MHz |
| selfResonantFreq | 79MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.480" (12.20mm) |
| features | - |
