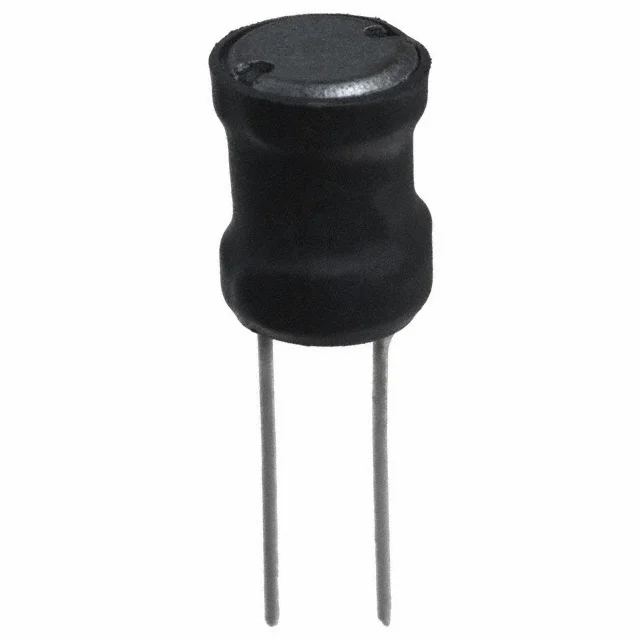

FIXED IND 4.7MH 240MA 13.6 OHM
| Inductance | 4.7 mH |
| Tolerance | ±10% |
| Current Rating | 240 mA |
| DC Resistance (DCR) | 13.6Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7MH 240MA 13.6 OHM |
| Series | 6000 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 15 @ 252kHz |
| selfResonantFreq | 500kHz |
| ratings | - |
| testFrequency | 252 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.480" (12.20mm) |
| features | - |
