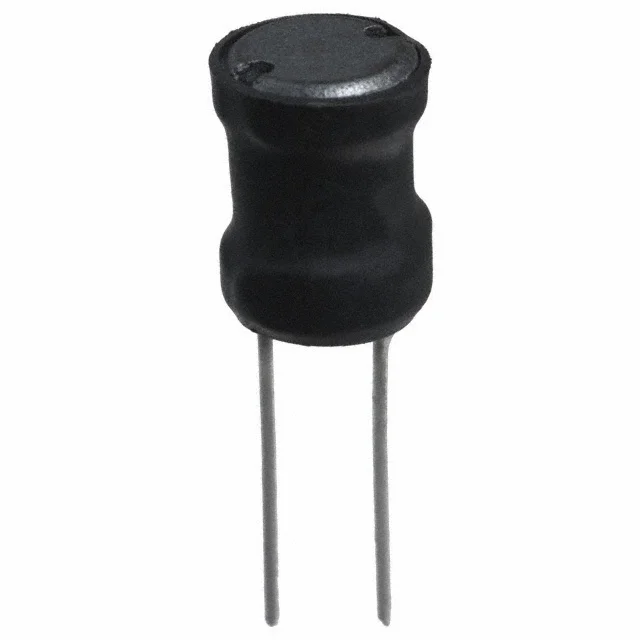

FIXED IND 6.8UH 4.1A 35 MOHM TH
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 4.1 A |
| DC Resistance (DCR) | 35mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.354" Dia (9.00mm) |
| Case / Size | Radial, Vertical Cylinder |
| Supplier | Bourns Inc. |
| Description | FIXED IND 6.8UH 4.1A 35 MOHM TH |
| Series | 6000 |
| productStatus | Not For New Designs |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 20 @ 7.96MHz |
| selfResonantFreq | 29MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 0.480" (12.20mm) |
| features | - |
