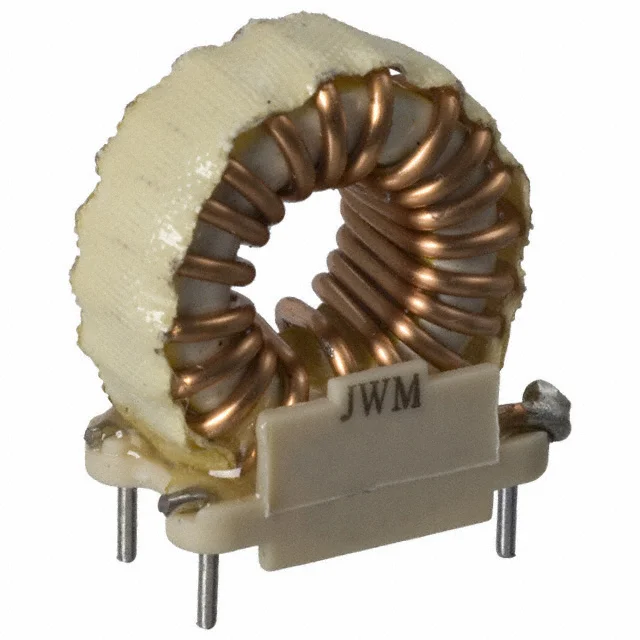

FIXED IND 75UH 5A 40 MOHM TH
| Inductance | 75 µH |
| Tolerance | ±15% |
| Current Rating | 5 A |
| DC Resistance (DCR) | 40mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.125" L x 0.600" W (28.58mm x 15.24mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 75UH 5A 40 MOHM TH |
| Series | 6700 |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 1.250" (31.75mm) |
| features | - |
