Description

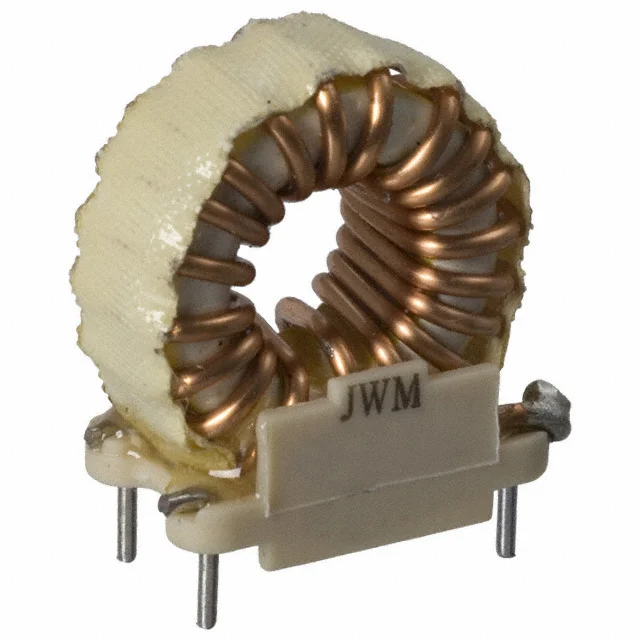

FIXED IND 400UH 2.25A 330 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 6708.
6708 has an inductance value of 400 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
6708 is rated for 2.25 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
6708 lists a DC resistance of 330mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
6708 uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 6708 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 400 µH |
| Tolerance | ±15% |
| Current Rating | 2.25 A |
| DC Resistance (DCR) | 330mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 1.125" L x 0.600" W (28.58mm x 15.24mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 400UH 2.25A 330 MOHM |
| Series | 6700 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | 1.250" (31.75mm) |
| Features | - |
