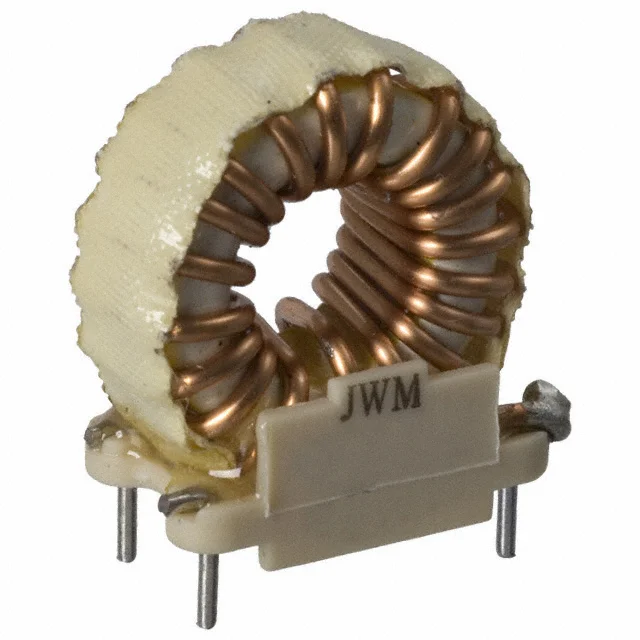

Description
FIXED IND 900UH 3.75A 175 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 6722.
6722 has an inductance value of 900 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
6722 is rated for 3.75 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
6722 lists a DC resistance of 175mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
6722 uses a package or case of Radial, Vertical, 4 Leads (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 6722 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 900 µH |
| Tolerance | ±15% |
| Current Rating | 3.75 A |
| DC Resistance (DCR) | 175mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 2.125" L x 1.100" W (53.97mm x 27.94mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Package / Case | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 900UH 3.75A 175 MOHM |
| Series | 6700 |
| Product Status | Obsolete |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Q @ Frequency | - |
| Self Resonant Frequency | - |
| Ratings | - |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | - |
| Height - Seated (Max) | 2.250" (57.15mm) |
| Features | - |
