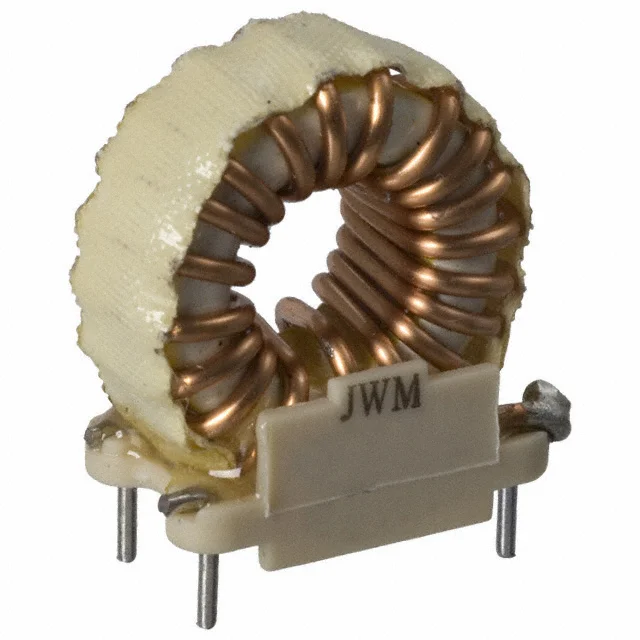

FIXED IND 4MH 1.75A 1.16 OHM TH
| Inductance | 4 mH |
| Tolerance | ±15% |
| Current Rating | 1.75 A |
| DC Resistance (DCR) | 1.16Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 2.125" L x 1.100" W (53.97mm x 27.94mm) |
| Case / Size | Radial, Vertical, 4 Leads (Open) |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4MH 1.75A 1.16 OHM TH |
| Series | 6700 |
| productStatus | Obsolete |
| typeConstruction | Toroidal |
| coreMaterial | Iron Powder |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | 2.250" (57.15mm) |
| features | - |
