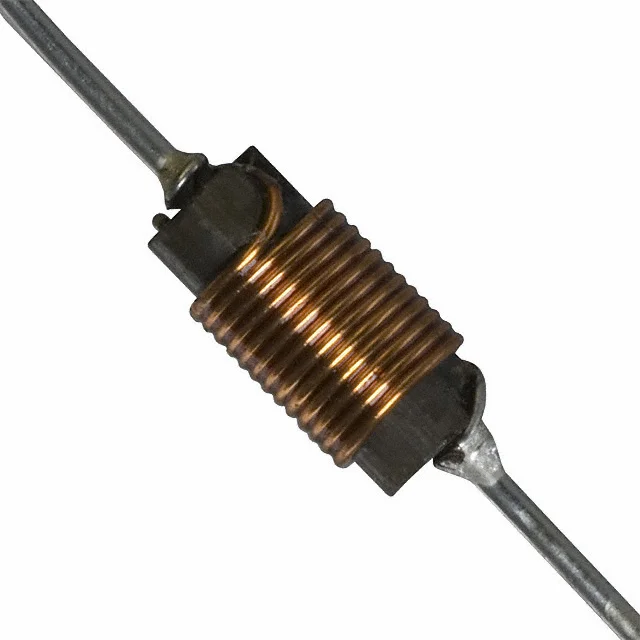

Description
FIXED IND 1UH 2.041A 48 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F106AI.
70F106AI has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F106AI is rated for 2.041 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F106AI lists a DC resistance of 48mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F106AI uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F106AI to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 2.041 A |
| DC Resistance (DCR) | 48mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 1UH 2.041A 48 MOHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 41 @ 25MHz |
| Self Resonant Frequency | 118MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
