Description

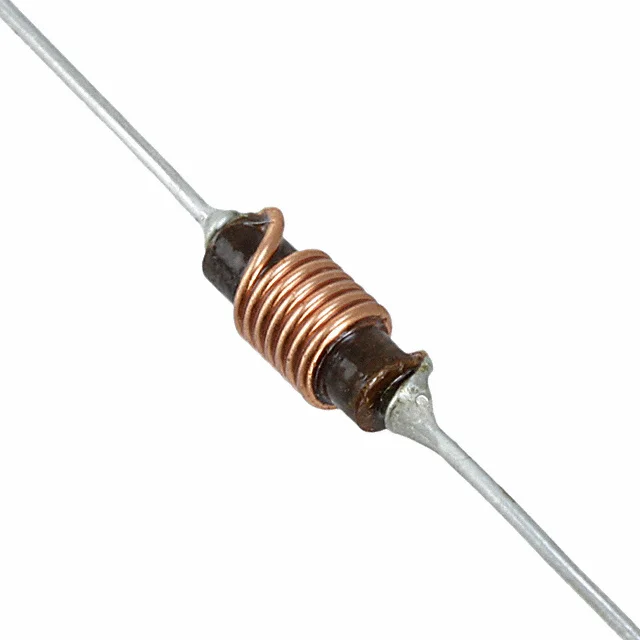

FIXED IND 100NH 3.922A 130 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F107AP-RC.
70F107AP-RC has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F107AP-RC is rated for 3.922 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F107AP-RC lists a DC resistance of 130mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F107AP-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F107AP-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating | 3.922 A |
| DC Resistance (DCR) | 130mOhm Max |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.150" Dia x 0.310" L (3.81mm x 7.87mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 100NH 3.922A 130 MOHM |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Wirewound |
| Core Material | Phenolic |
| Shielding | Unshielded |
| Q @ Frequency | 49 @ 25MHz |
| Self Resonant Frequency | 600MHz |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Through Hole |
