Description

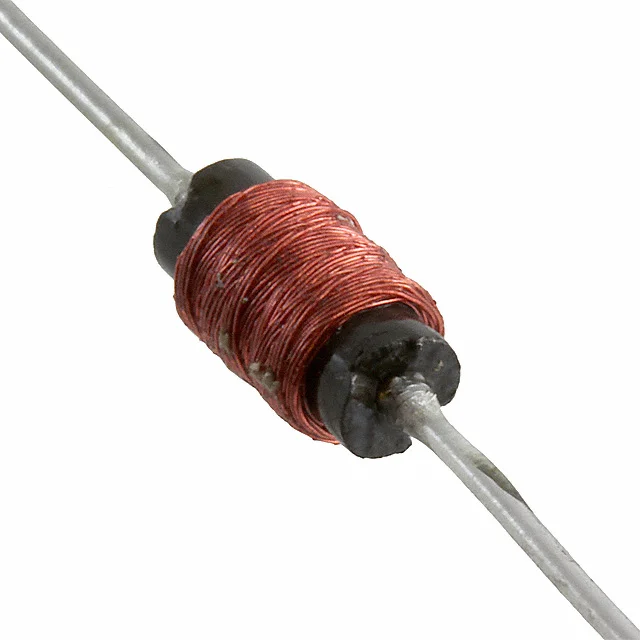

FIXED IND 200UH 120MA 10.3 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F204AI-RC.
70F204AI-RC has an inductance value of 200 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F204AI-RC is rated for 120 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F204AI-RC lists a DC resistance of 10.3Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F204AI-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F204AI-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 200 µH |
| Tolerance | ±5% |
| Current Rating | 120 mA |
| DC Resistance (DCR) | 10.3Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 200UH 120MA 10.3 OHM |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 47 @ 790kHz |
| Self Resonant Frequency | 2.7MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Through Hole |
