Description

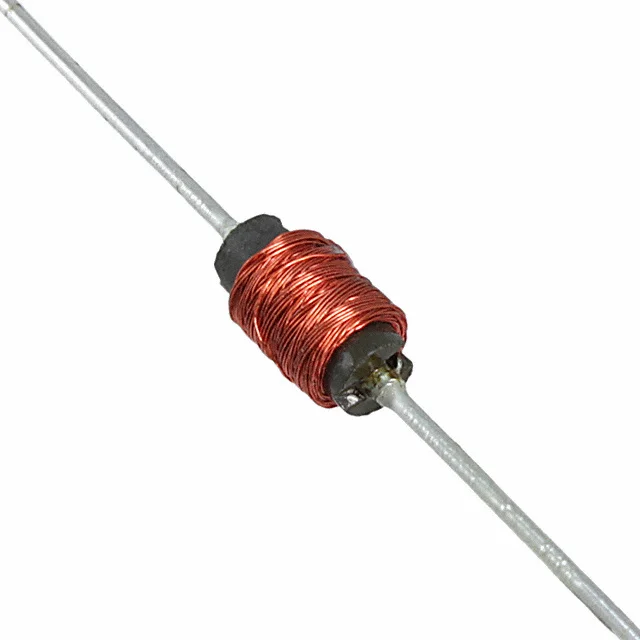

FIXED IND 220UH 114MA 11.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F224AI-RC.
70F224AI-RC has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F224AI-RC is rated for 114 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F224AI-RC lists a DC resistance of 11.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F224AI-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F224AI-RC to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±5% |
| Current Rating | 114 mA |
| DC Resistance (DCR) | 11.5Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 220UH 114MA 11.5 OHM |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 46 @ 790kHz |
| Self Resonant Frequency | 2.5MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Through Hole |
