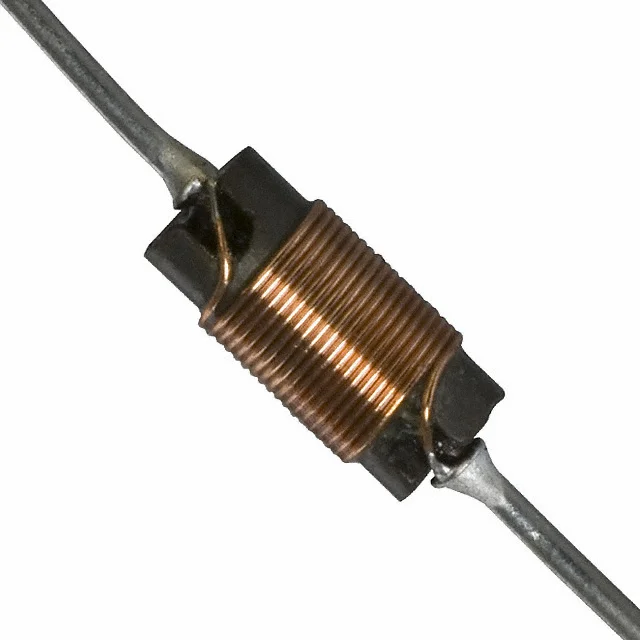

Description
FIXED IND 2.2UH 1.132A 156 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F226AI-RC.
70F226AI-RC has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F226AI-RC is rated for 1.132 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F226AI-RC lists a DC resistance of 156mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F226AI-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F226AI-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±10% |
| Current Rating | 1.132 A |
| DC Resistance (DCR) | 156mOhm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.160" Dia x 0.250" L (4.06mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 2.2UH 1.132A 156 MOHM |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 43 @ 7.9MHz |
| Self Resonant Frequency | 87MHz |
| Inductance Test Frequency | 7.9 MHz |
| Mounting Type | Through Hole |
