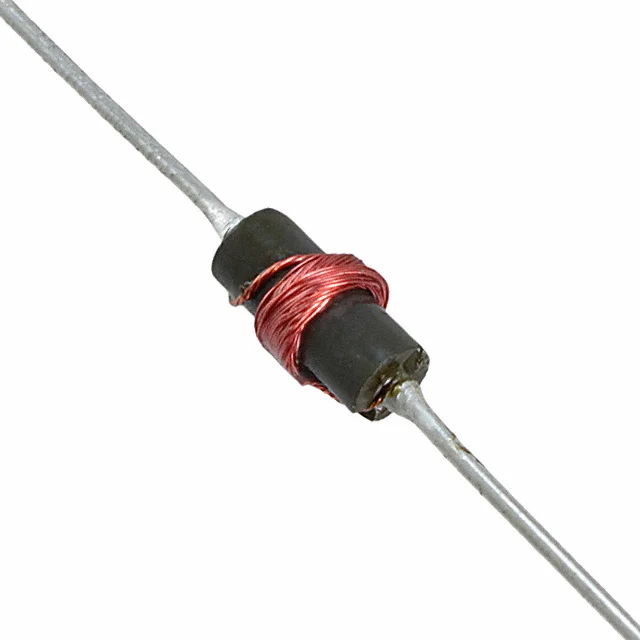

FIXED IND 27UH 213MA 2.64 OHM TH
| Inductance | 27 µH |
| Tolerance | ±5% |
| Current Rating | 213 mA |
| DC Resistance (DCR) | 2.64Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 27UH 213MA 2.64 OHM TH |
| Series | 70F |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 49 @ 2.5MHz |
| selfResonantFreq | 12MHz |
| ratings | - |
| testFrequency | 2.5 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
