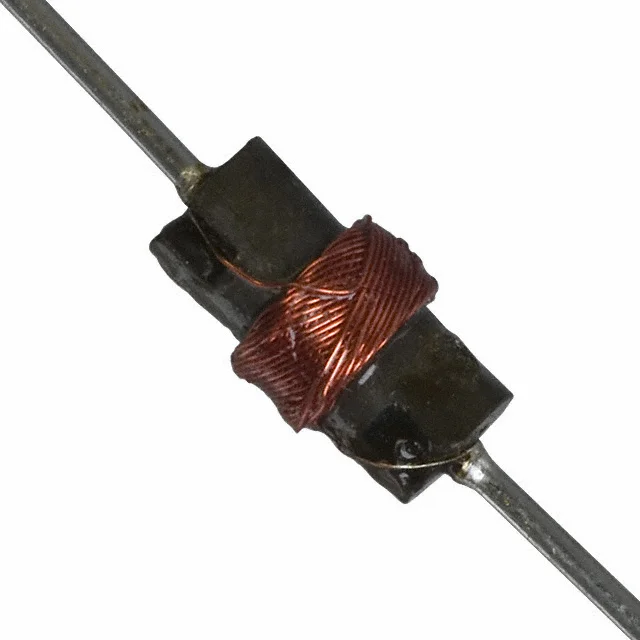

Description
FIXED IND 33UH 208MA 2.76 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F335AI.
70F335AI has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F335AI is rated for 208 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F335AI lists a DC resistance of 2.76Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F335AI uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F335AI to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±5% |
| Current Rating | 208 mA |
| DC Resistance (DCR) | 2.76Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.170" Dia x 0.250" L (4.32mm x 6.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 208MA 2.76 OHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 2.5MHz |
| Self Resonant Frequency | 10MHz |
| Inductance Test Frequency | 2.5 MHz |
| Mounting Type | Through Hole |
