Description

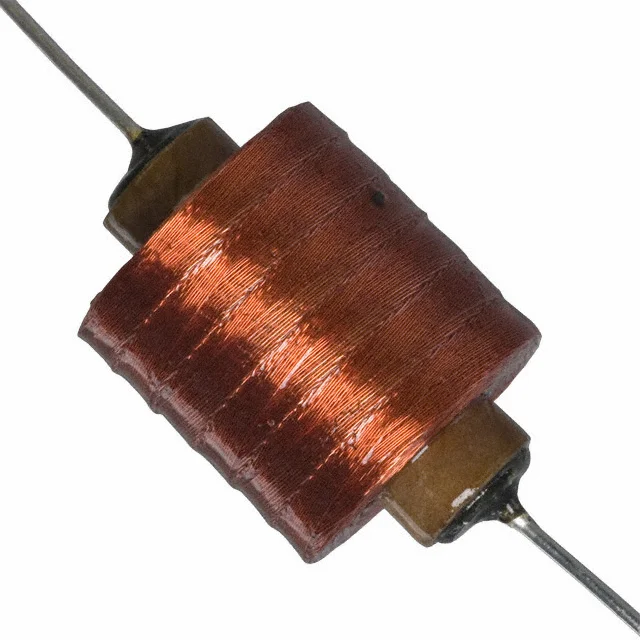

FIXED IND 470MH 30MA 704 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F471AF-RC.
70F471AF-RC has an inductance value of 470 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F471AF-RC is rated for 30 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F471AF-RC lists a DC resistance of 704Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F471AF-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F471AF-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 mH |
| Tolerance | ±5% |
| Current Rating | 30 mA |
| DC Resistance (DCR) | 704Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.610" Dia x 0.880" L (15.49mm x 22.35mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 470MH 30MA 704 OHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 55 @ 25kHz |
| Self Resonant Frequency | 54kHz |
| Inductance Test Frequency | 25 kHz |
| Mounting Type | Through Hole |
