Description

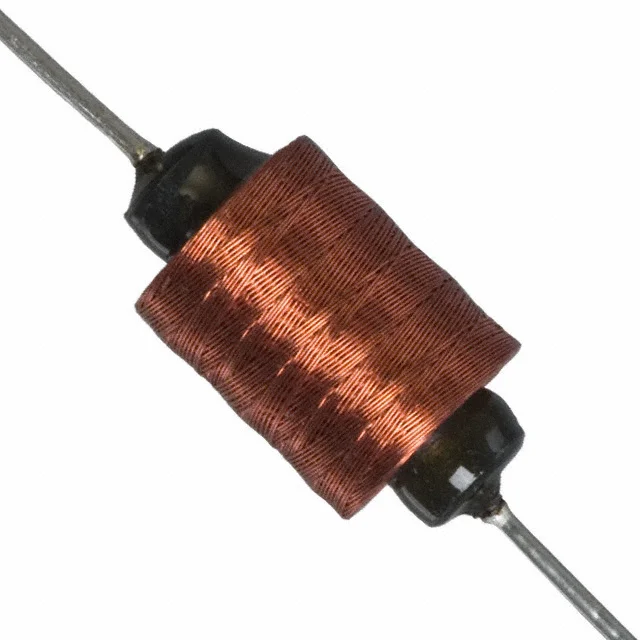

FIXED IND 47MH 38MA 168 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F472AF-RC.
70F472AF-RC has an inductance value of 47 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F472AF-RC is rated for 38 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F472AF-RC lists a DC resistance of 168Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F472AF-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F472AF-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 mH |
| Tolerance | ±5% |
| Current Rating | 38 mA |
| DC Resistance (DCR) | 168Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.380" Dia x 0.630" L (9.65mm x 16.00mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47MH 38MA 168 OHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 57 @ 79kHz |
| Self Resonant Frequency | 206kHz |
| Inductance Test Frequency | 79 kHz |
| Mounting Type | Through Hole |
