Description

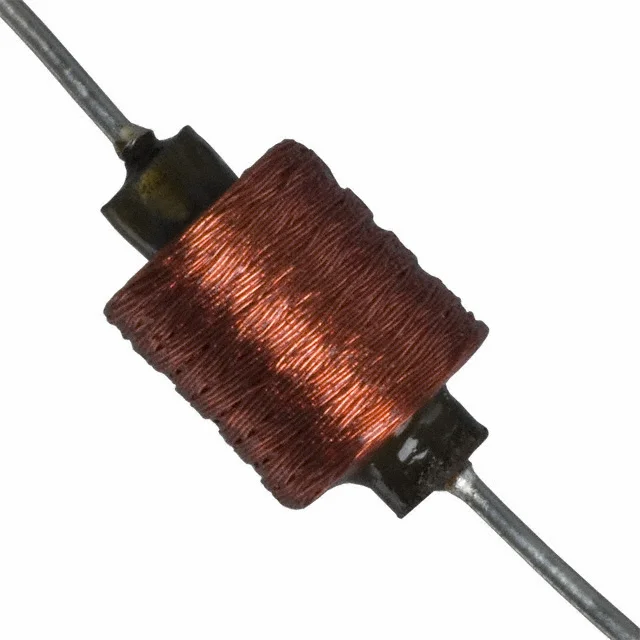

FIXED IND 4.7MH 48MA 64.8 OHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 70F473AI-RC.
70F473AI-RC has an inductance value of 4.7 mH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
70F473AI-RC is rated for 48 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
70F473AI-RC lists a DC resistance of 64.8Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
70F473AI-RC uses a package or case of Axial. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 70F473AI-RC to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 mH |
| Tolerance | ±5% |
| Current Rating | 48 mA |
| DC Resistance (DCR) | 64.8Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.280" Dia x 0.380" L (7.11mm x 9.65mm) |
| Case / Size | Axial |
| Package / Case | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7MH 48MA 64.8 OHM TH |
| Series | 70F |
| Product Status | Obsolete |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 49 @ 250kHz |
| Self Resonant Frequency | 680kHz |
| Inductance Test Frequency | 250 kHz |
| Mounting Type | Through Hole |
