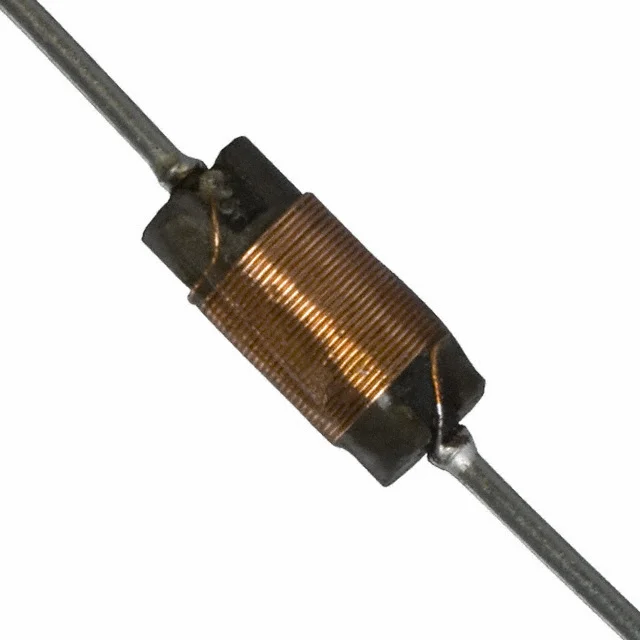

FIXED IND 4.7UH 661MA 457 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±10% |
| Current Rating | 661 mA |
| DC Resistance (DCR) | 457mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.150" Dia x 0.250" L (3.81mm x 6.35mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 661MA 457 MOHM |
| Series | 70F |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 43 @ 7.9MHz |
| selfResonantFreq | 53MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
