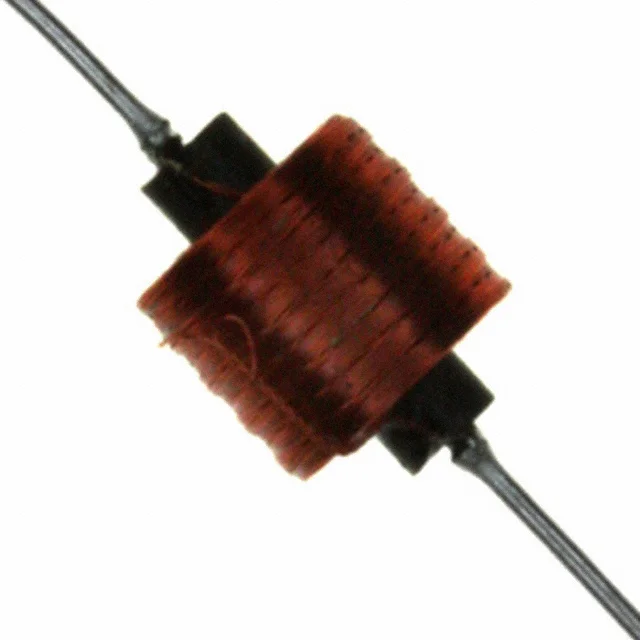

FIXED IND 7.5MH 41MA 85.2 OHM TH
| Inductance | 7.5 mH |
| Tolerance | ±5% |
| Current Rating | 41 mA |
| DC Resistance (DCR) | 85.2Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.310" Dia x 0.380" L (7.87mm x 9.65mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 7.5MH 41MA 85.2 OHM TH |
| Series | 70F |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 49 @ 250kHz |
| selfResonantFreq | 600kHz |
| ratings | - |
| testFrequency | 250 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
