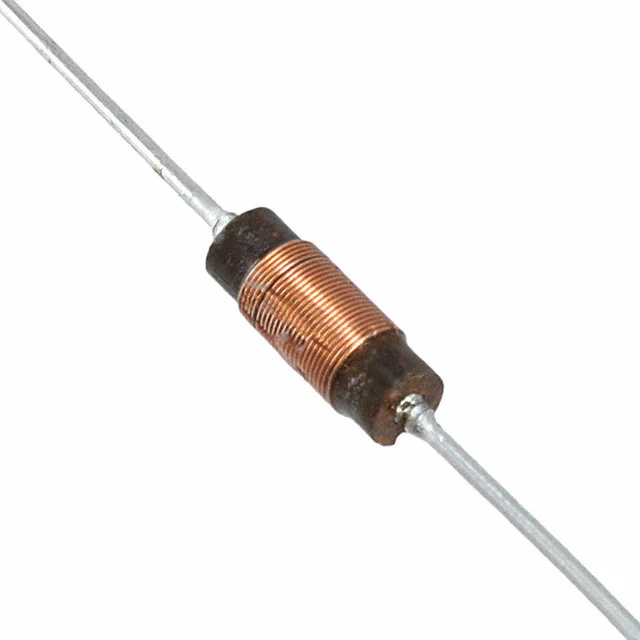

FIXED IND 750NH 870MA 264 MOHM
| Inductance | 750 nH |
| Tolerance | ±20% |
| Current Rating | 870 mA |
| DC Resistance (DCR) | 264mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.120" Dia x 0.310" L (3.05mm x 7.87mm) |
| Case / Size | Axial |
| Supplier | Bourns Inc. |
| Description | FIXED IND 750NH 870MA 264 MOHM |
| Series | 70F |
| productStatus | Obsolete |
| typeConstruction | Wirewound |
| coreMaterial | Phenolic |
| shielding | Unshielded |
| qFactor | 48 @ 25MHz |
| selfResonantFreq | 224MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | - |
