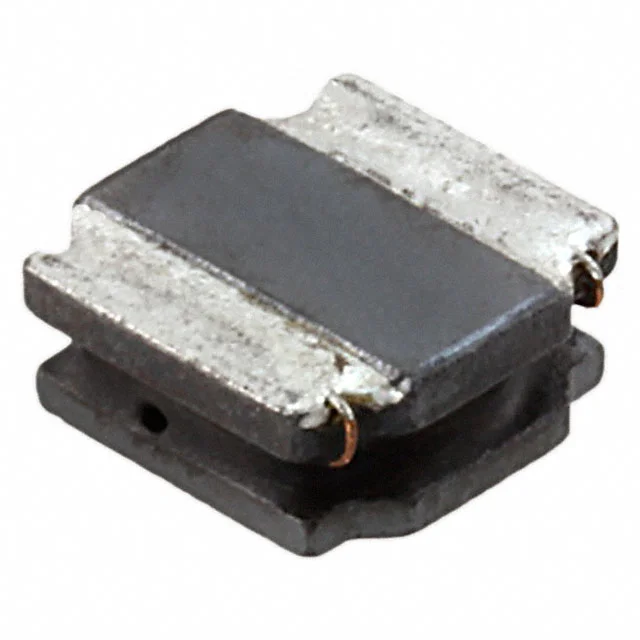

FIXED IND 1.2UH 4.7A 11 MOHM SMD
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating | 4.7 A |
| DC Resistance (DCR) | 11mOhm |
| saturationCurrent | 7.3A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2UH 4.7A 11 MOHM SMD |
| Series | WE-LQS |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 106MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 6028 |
| heightMax | 0.110" (2.80mm) |
| features | - |
