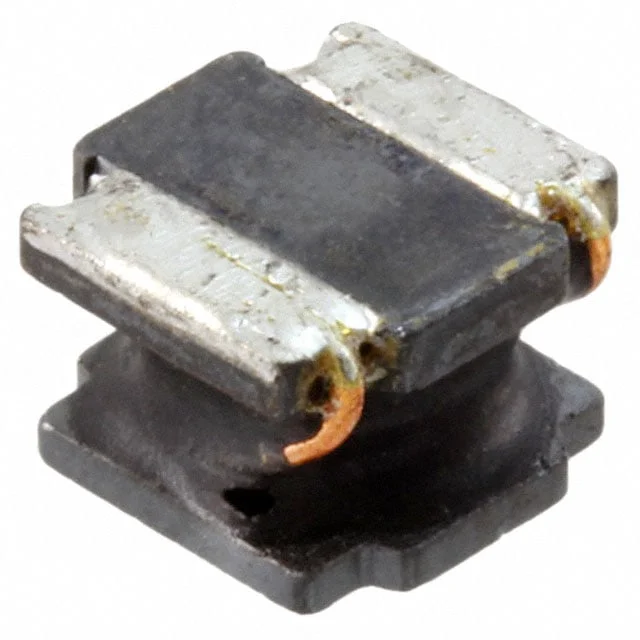

FIXED IND 1.2UH 6.25A 10 MOHM
| Inductance | 1.2 µH |
| Tolerance | ±30% |
| Current Rating | 6.25 A |
| DC Resistance (DCR) | 10mOhm |
| saturationCurrent | 10.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.236" L x 0.236" W (6.00mm x 6.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.2UH 6.25A 10 MOHM |
| Series | WE-LQS |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Semi-Shielded |
| qFactor | - |
| selfResonantFreq | 121MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 6045 |
| heightMax | 0.177" (4.50mm) |
| features | - |
