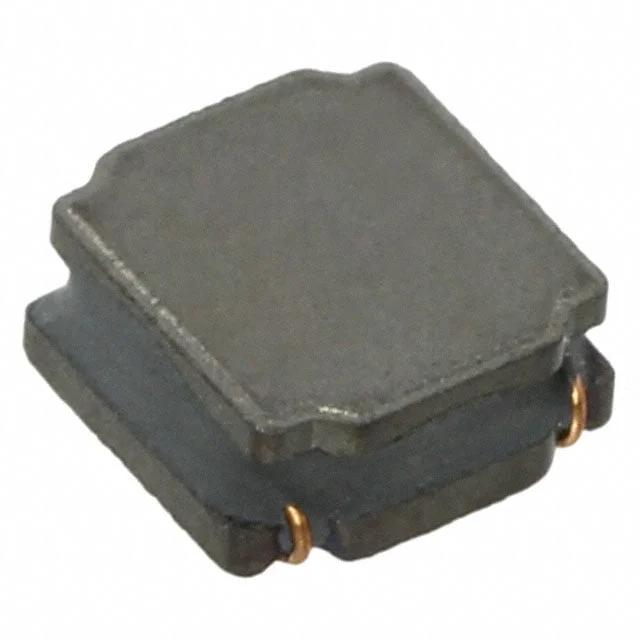

Description
FIXED IND 4.7UH 800MA 444 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74405020047.
74405020047 has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74405020047 is rated for 800 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74405020047 lists a DC resistance of 444mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74405020047 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74405020047 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 800 mA |
| DC Resistance (DCR) | 444mOhm Max |
| Saturation Current | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.079" L x 0.063" W (2.00mm x 1.60mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 800MA 444 MOHM |
| Series | WE-LQSH |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 35MHz |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | SMD |
| Height - Seated (Max) | 0.039" (1.00mm) |
