Description

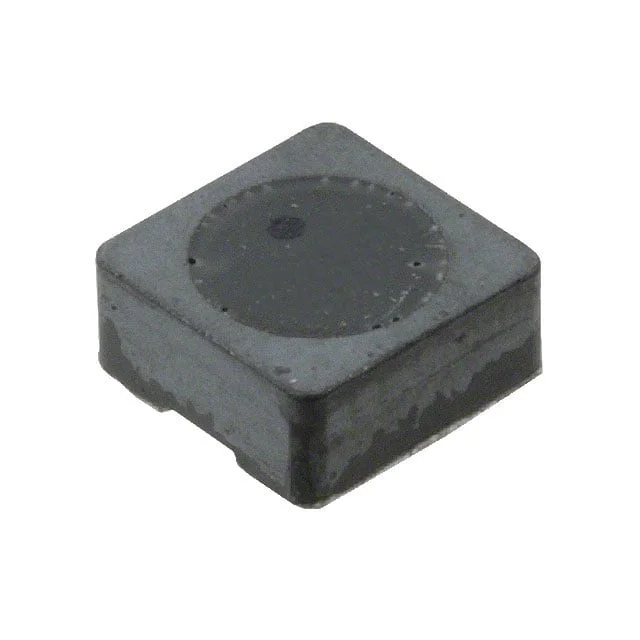

FIXED IND 220UH 230MA 2.5 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744052221.
744052221 has an inductance value of 220 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744052221 is rated for 230 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744052221 lists a DC resistance of 2.5Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744052221 uses a package or case of 2323 (5858 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744052221 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 220 µH |
| Tolerance | ±30% |
| Current Rating | 230 mA |
| DC Resistance (DCR) | 2.5Ohm Max |
| Saturation Current | 300mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | 2323 (5858 Metric) |
| Package / Case | 2323 (5858 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 220UH 230MA 2.5 OHM |
| Series | WE-TPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 7MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.079" (2.00mm) |
