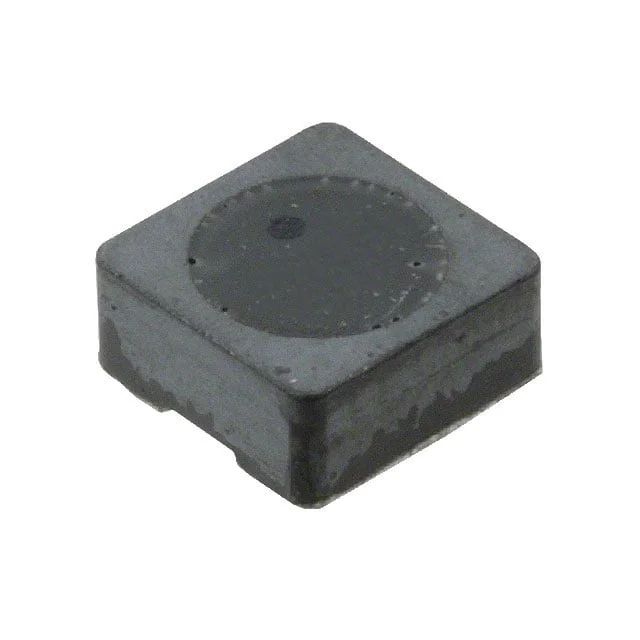

Description
FIXED IND 2.6UH 3A 30 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744053002.
744053002 has an inductance value of 2.6 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744053002 is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744053002 lists a DC resistance of 30mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744053002 uses a package or case of 2323 (5858 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744053002 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 2.6 µH |
| Tolerance | ±30% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 30mOhm Max |
| Saturation Current | 2.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.228" L x 0.228" W (5.80mm x 5.80mm) |
| Case / Size | 2323 (5858 Metric) |
| Package / Case | 2323 (5858 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.6UH 3A 30 MOHM SMD |
| Series | WE-TPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 55MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
