Description

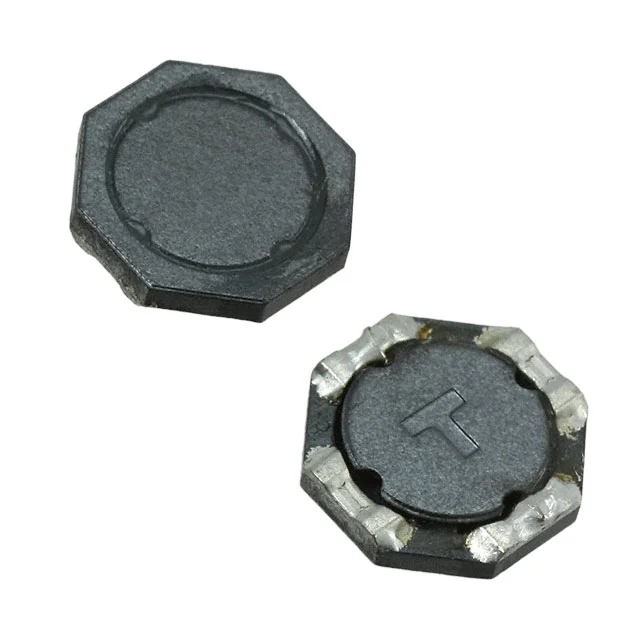

FIXED IND 8.2UH 1.65A 115 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7440690082.
7440690082 has an inductance value of 8.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7440690082 is rated for 1.65 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7440690082 lists a DC resistance of 115mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7440690082 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7440690082 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 8.2 µH |
| Tolerance | ±20% |
| Current Rating | 1.65 A |
| DC Resistance (DCR) | 115mOhm Max |
| Saturation Current | 1.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 8.2UH 1.65A 115 MOHM |
| Series | WE-TPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 12MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.059" (1.50mm) |
