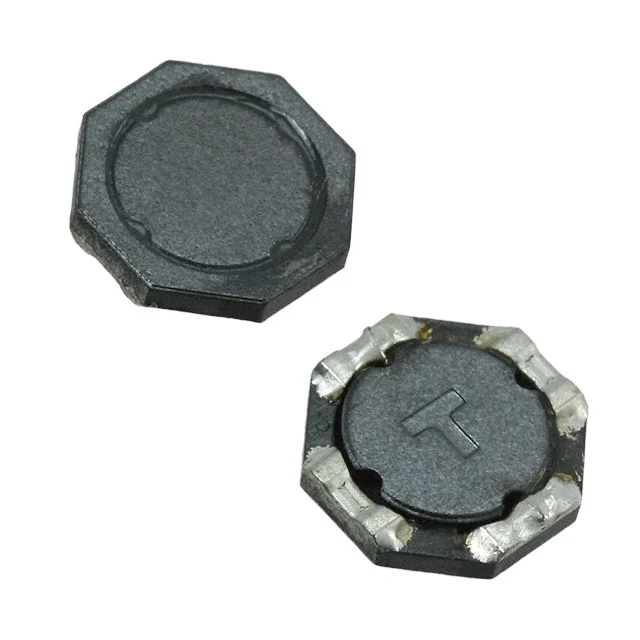

Description
FIXED IND 12UH 1.35A 170 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7440690120.
7440690120 has an inductance value of 12 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7440690120 is rated for 1.35 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7440690120 lists a DC resistance of 170mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7440690120 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7440690120 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 12 µH |
| Tolerance | ±20% |
| Current Rating | 1.35 A |
| DC Resistance (DCR) | 170mOhm Max |
| Saturation Current | 1.2A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 12UH 1.35A 170 MOHM |
| Series | WE-TPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 9MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.059" (1.50mm) |
