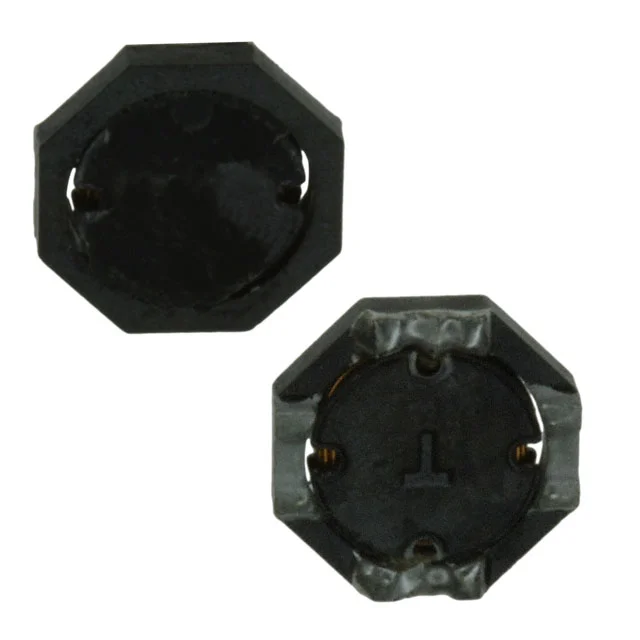

FIXED IND 22UH 1.3A 200 MOHM SMD
| Inductance | 22 µH |
| Tolerance | ±30% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 200mOhm Max |
| saturationCurrent | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.315" L x 0.315" W (8.00mm x 8.00mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 22UH 1.3A 200 MOHM SMD |
| Series | WE-TPC |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 16MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.079" (2.00mm) |
| features | - |
