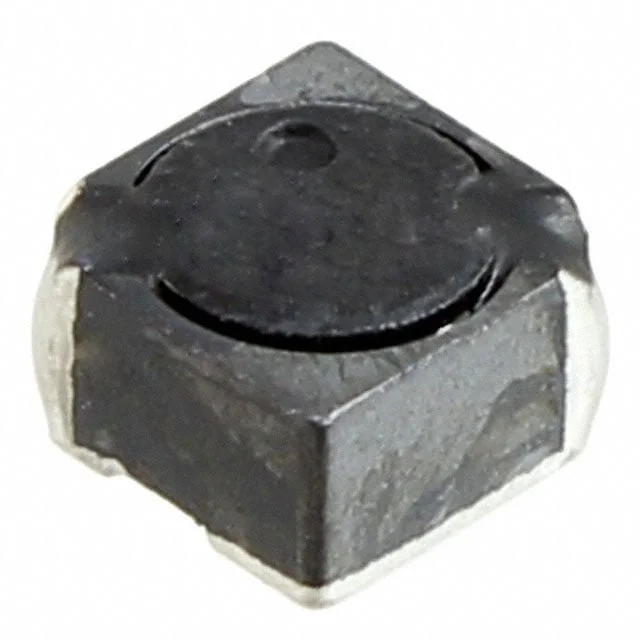

FIXED IND 4.7UH 1.55A 103 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.55 A |
| DC Resistance (DCR) | 103mOhm Max |
| saturationCurrent | 2.9A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Case / Size | 1919 (4848 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 4.7UH 1.55A 103 MOHM |
| Series | WE-SPC |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 38MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
