Description

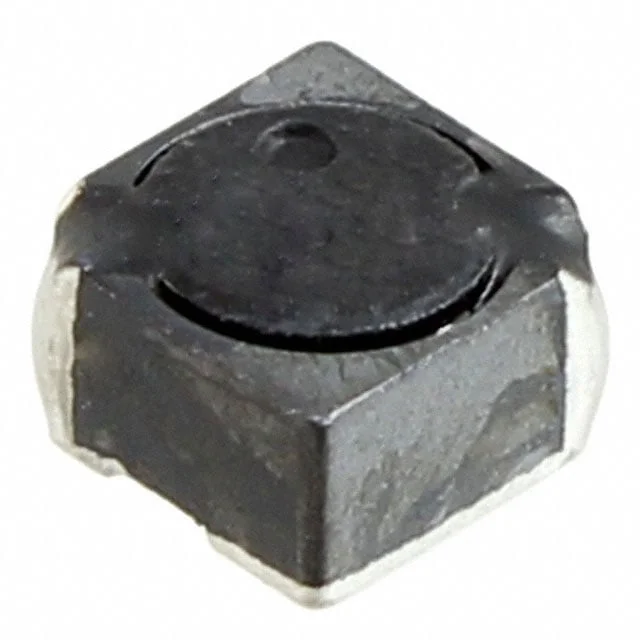

FIXED IND 33UH 750MA 500 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74408942330.
74408942330 has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74408942330 is rated for 750 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74408942330 lists a DC resistance of 500mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74408942330 uses a package or case of 1919 (4848 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74408942330 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±20% |
| Current Rating | 750 mA |
| DC Resistance (DCR) | 500mOhm Max |
| Saturation Current | 1.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Case / Size | 1919 (4848 Metric) |
| Package / Case | 1919 (4848 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 33UH 750MA 500 MOHM |
| Series | WE-SPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 12MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
