Description

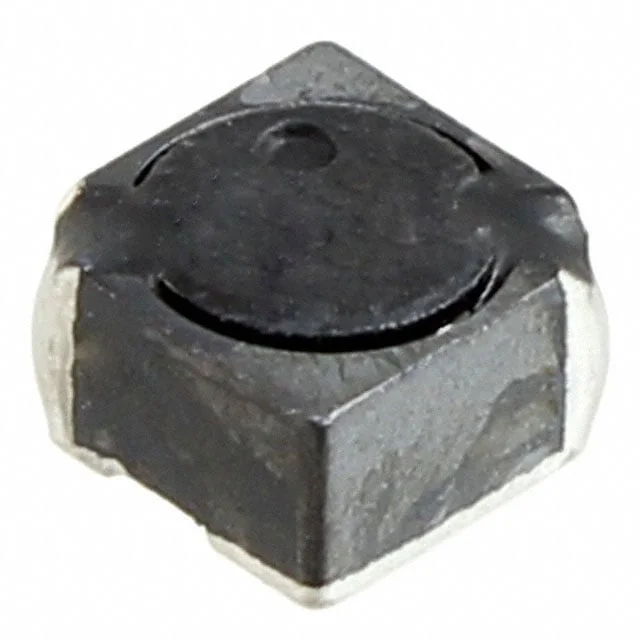

FIXED IND 47UH 660MA 608 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 74408942470.
74408942470 has an inductance value of 47 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
74408942470 is rated for 660 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
74408942470 lists a DC resistance of 608mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
74408942470 uses a package or case of 1919 (4848 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 74408942470 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 47 µH |
| Tolerance | ±20% |
| Current Rating | 660 mA |
| DC Resistance (DCR) | 608mOhm Max |
| Saturation Current | 1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.189" L x 0.189" W (4.80mm x 4.80mm) |
| Case / Size | 1919 (4848 Metric) |
| Package / Case | 1919 (4848 Metric) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 47UH 660MA 608 MOHM |
| Series | WE-SPC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Self Resonant Frequency | 10MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
