Description

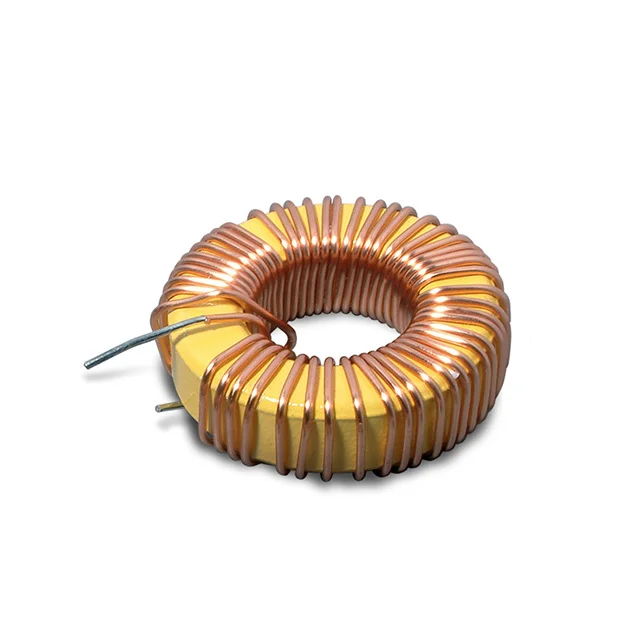

FIXED IND 49UH 5.8A 50 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744132.
744132 has an inductance value of 49 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744132 is rated for 5.8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744132 lists a DC resistance of 50mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744132 uses a package or case of Radial, Vertical (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744132 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 49 µH |
| Tolerance | ±20% |
| Current Rating | 5.8 A |
| DC Resistance (DCR) | 50mOhm Max |
| Saturation Current | 2.2A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.827" Dia x 0.374" W (21.00mm x 9.50mm) |
| Case / Size | Radial, Vertical (Open) |
| Package / Case | Radial, Vertical (Open) |
| Supplier | Würth Elektronik |
| Description | FIXED IND 49UH 5.8A 50 MOHM TH |
| Series | WE-SI |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Shielded |
| Self Resonant Frequency | 16MHz |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
