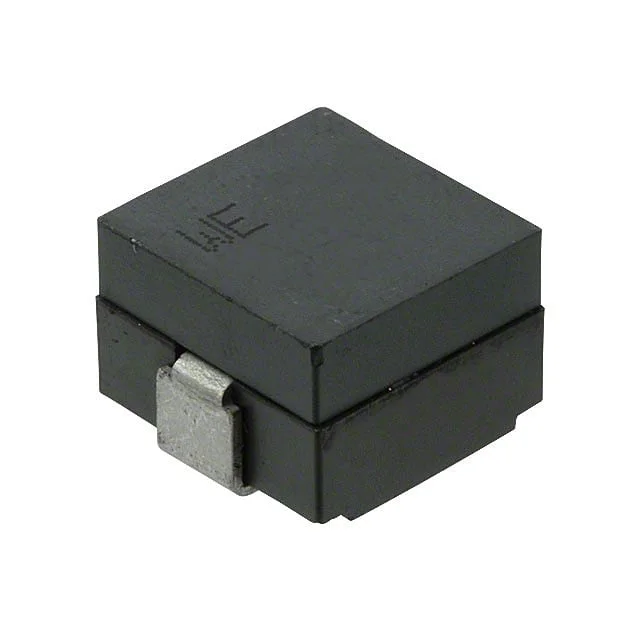

Description
FIXED IND 120NH 47.5A 0.165 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744309012.
744309012 has an inductance value of 120 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744309012 is rated for 47.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744309012 lists a DC resistance of 0.165mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744309012 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744309012 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 120 nH |
| Tolerance | ±20% |
| Current Rating | 47.5 A |
| DC Resistance (DCR) | 0.165mOhm |
| Saturation Current | 125A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.551" L x 0.512" W (14.00mm x 13.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 120NH 47.5A 0.165 MOHM |
| Series | WE-HCM |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Manganese Zinc Ferrite (MnZn) |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1390 |
| Height - Seated (Max) | 0.374" (9.50mm) |
