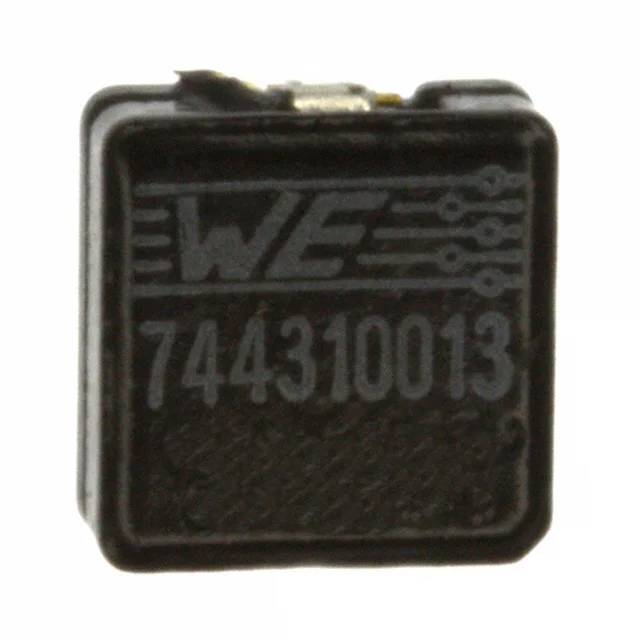

FIXED IND 130NH 22A 0.91 MOHM
| Inductance | 130 nH |
| Tolerance | ±20% |
| Current Rating | 22 A |
| DC Resistance (DCR) | 0.91mOhm |
| saturationCurrent | 48A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 130NH 22A 0.91 MOHM |
| Series | WE-HCI |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 400MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 7030 |
| heightMax | 0.130" (3.30mm) |
| features | - |
