Description

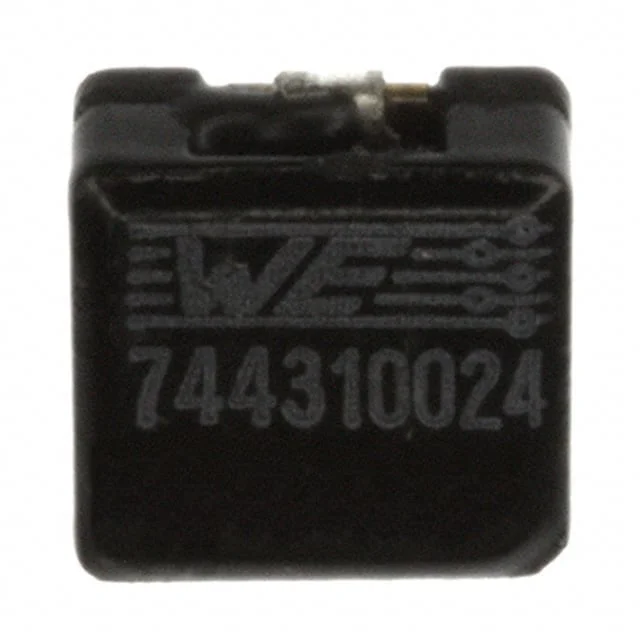

FIXED IND 240NH 18A 1.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744310024.
744310024 has an inductance value of 240 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744310024 is rated for 18 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744310024 lists a DC resistance of 1.8mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744310024 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744310024 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 240 nH |
| Tolerance | ±20% |
| Current Rating | 18 A |
| DC Resistance (DCR) | 1.8mOhm |
| Saturation Current | 40A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 240NH 18A 1.8 MOHM SMD |
| Series | WE-HCI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 220MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7030 |
| Height - Seated (Max) | 0.130" (3.30mm) |
