Description

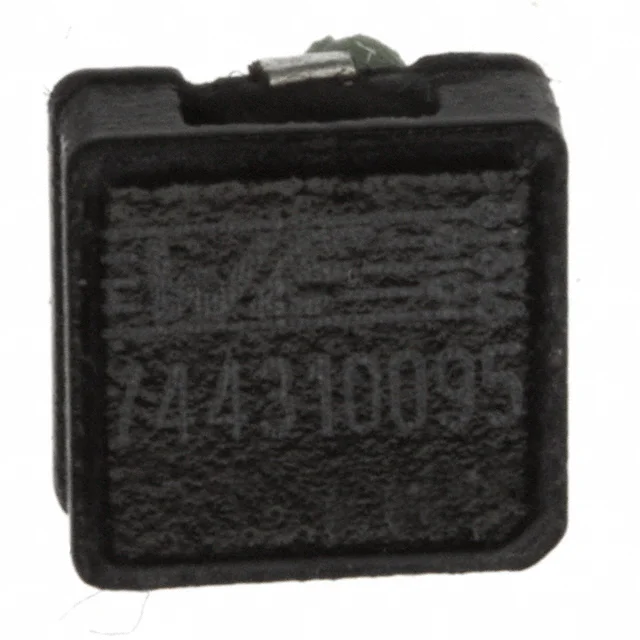

FIXED IND 950NH 11A 6.2 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744310095.
744310095 has an inductance value of 950 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744310095 is rated for 11 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744310095 lists a DC resistance of 6.2mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744310095 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744310095 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 950 nH |
| Tolerance | ±20% |
| Current Rating | 11 A |
| DC Resistance (DCR) | 6.2mOhm |
| Saturation Current | 13A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 950NH 11A 6.2 MOHM SMD |
| Series | WE-HCI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 90MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7030 |
| Height - Seated (Max) | 0.130" (3.30mm) |
