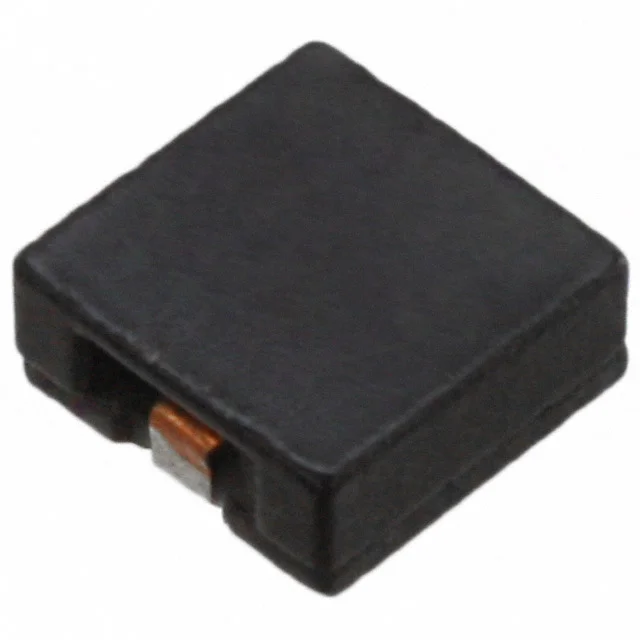

Description
FIXED IND 1.5UH 7.5A 12.7 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744310150.
744310150 has an inductance value of 1.5 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744310150 is rated for 7.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744310150 lists a DC resistance of 12.7mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744310150 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744310150 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1.5 µH |
| Tolerance | ±20% |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 12.7mOhm |
| Saturation Current | 12A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.276" L x 0.272" W (7.00mm x 6.90mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 1.5UH 7.5A 12.7 MOHM |
| Series | WE-HCI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 80MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 7030 |
| Height - Seated (Max) | 0.130" (3.30mm) |
