Description

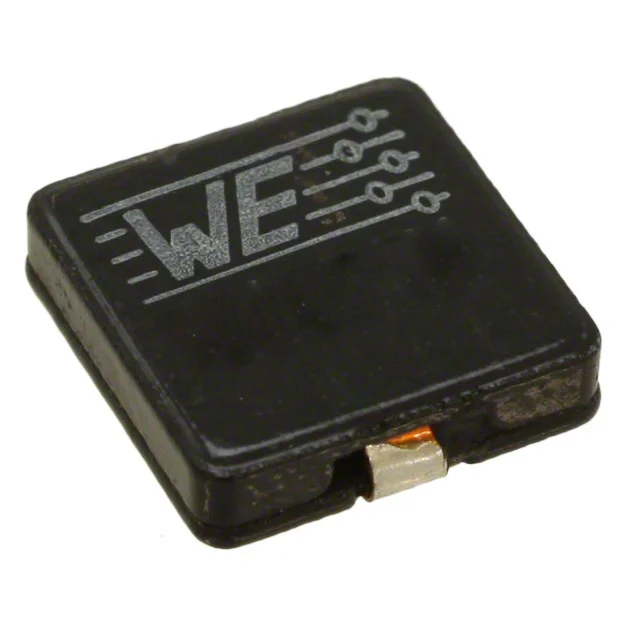

FIXED IND 250NH 24A 0.75 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 744313025.
744313025 has an inductance value of 250 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
744313025 is rated for 24 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
744313025 lists a DC resistance of 0.75mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
744313025 uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 744313025 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 250 nH |
| Tolerance | ±20% |
| Current Rating | 24 A |
| DC Resistance (DCR) | 0.75mOhm |
| Saturation Current | 60A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 250NH 24A 0.75 MOHM |
| Series | WE-HCI |
| Product Status | Active |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Self Resonant Frequency | 170MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1335 |
| Height - Seated (Max) | 0.138" (3.50mm) |
