Description

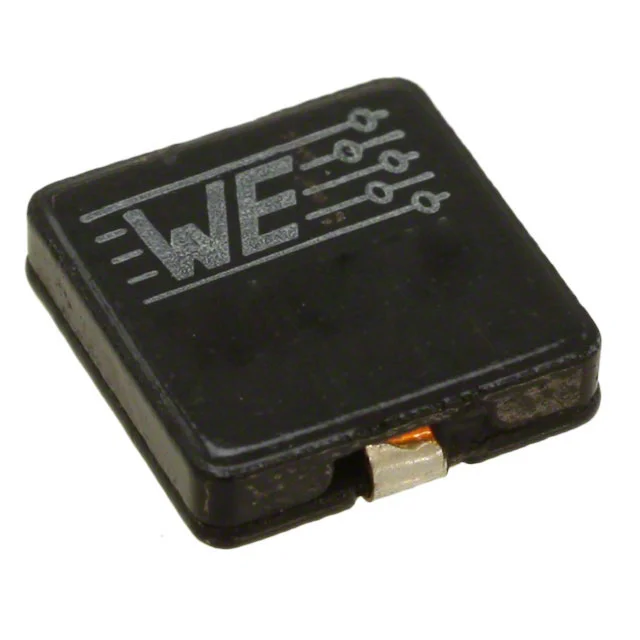

FIXED IND 3.3UH 12A 8.1 MOHM SMD
Specifications
Inductance
3.3 µH
Current Rating
12 A
DC Resistance (DCR)
8.1mOhm
Dimensions
0.512" L x 0.504" W (13.00mm x 12.80mm)
Product Attributes
Manufacturer Verified
Last verified: 6/13/2026| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 12 A |
| DC Resistance (DCR) | 8.1mOhm |
| saturationCurrent | 14A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.512" L x 0.504" W (13.00mm x 12.80mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 3.3UH 12A 8.1 MOHM SMD |
| Series | WE-HCI |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 30MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1335 |
| heightMax | 0.138" (3.50mm) |
| features | - |
