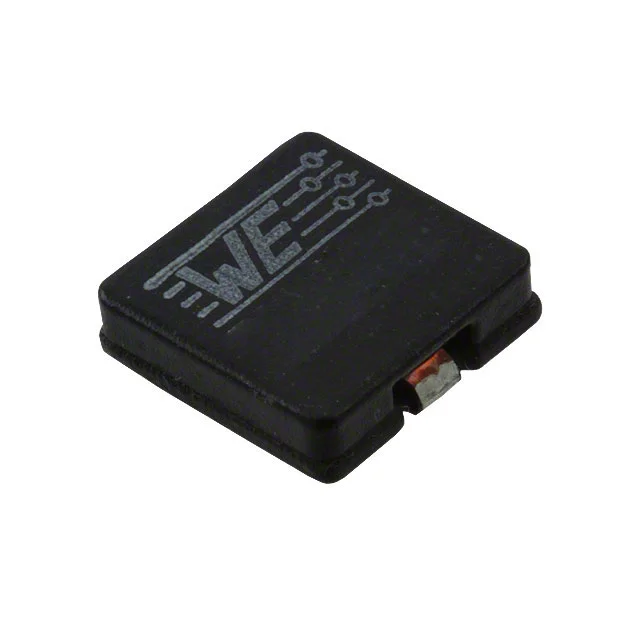

FIXED IND 2.2UH 9A 11.38 MOHM
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 9 A |
| DC Resistance (DCR) | 11.38mOhm |
| saturationCurrent | 15A |
| Operating Temperature | -40°C ~ 150°C |
| Dimensions | 0.417" L x 0.417" W (10.60mm x 10.60mm) |
| Case / Size | Nonstandard |
| Supplier | Würth Elektronik |
| Description | FIXED IND 2.2UH 9A 11.38 MOHM |
| Series | WE-HCI |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | 36MHz |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1030 |
| heightMax | 0.122" (3.10mm) |
| features | - |
